Downhole Cable With Propylene Block Copolymer PTFE Insulation For ESP Installations

ESP cable, flat, PFTE

  • Heat resistance: 230 (250)°C (446°F)
  • AWG# 2; 3; 4; 5; 6; 7; 8; 9
  • Design features: Minimum weight and size
  • Stay flexible at minus 60°C (minus 76°F)
  • Permissible voltage 5000 V

Cables, cable lines and extensions for them designed to provide power supply to submersible motors, AC voltage, 30 to 200 Hz, AWG# 2; 3; 4; 5; 6; 7; 8; 9, rated voltage 5000V, operated in certain downhole conditions.

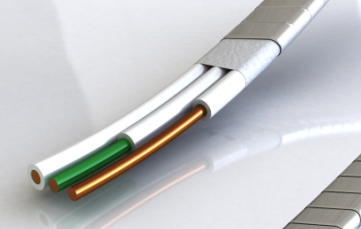

Downhole Cable Image 1

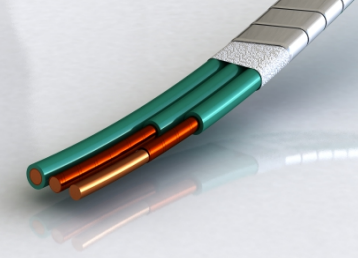

Downhole Cable Image 2

Downhole Cable For Submersible Pumps Installations

ESP cable, flat, BC

  • Heat resistance: 120°C (248°F)
  • AWG# 2; 3; 4; 5; 6; 7; 8; 9

Downhole Cable For Submersible Pumps Installations

ESP cable, flat, BС

  • Heat resistance: 140°C (284°F)
  • AWG# 2; 3; 4; 5; 6; 7

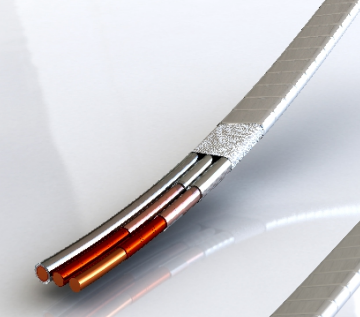

Downhole Cable Image 3

Cable with copper core, the first layer of insulation is PMF-S-352 polyimide-fluoroplastic film with 50% overlap, the second layer of insulation is made of a composition of a propylene block copolymer with ethylene, bedding is made of non-woven material, armored with galvanized steel tape, flat. Short-term (up to 36 hours) overheating up to 160°C (320°F) is permissible. Permissible voltage 4500V.
