MLE (motor lead extension)cable extensions
The unified cable extensions (MLE) UB46, UB46-2, and UB47 are designed to connect the cable line to submersible electric motors (SEMs) manufactured by various global manufacturers.
Characteristics of the cable extensions:
UB46:
- Temperature range: 90-150 °C.
- Made of KPPBPT type cable.
Characteristics of the cable extensions:
UB46-2:
- Temperature range: 200-250 °C.
- Made of Redalead type lead-sheathed high-temperature cable.
The unification of these cable extensions allows them to be used with various SEM models, simplifying the installation and maintenance of submersible electric pump cable lines.

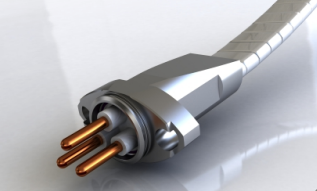

01 MOTOR LEAD EXTENSION - MLE
MLE WITH RADIAL - FACE SEAL
This is used as part of a cable line for three-phase electric current supply to submersible electric for motor size: 362, 406, 449

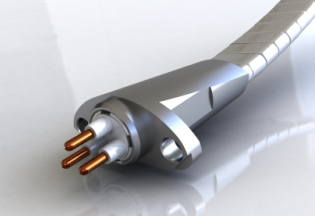

03 MOTOR LEAD EXTENSION - MLE
MLE WITH RADIAL - FACE SEAL, SMALL-SIZE
This is used as part of a cable line for three-phase electric current supply to submersible electric for motor size: 362

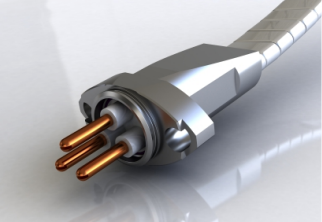

04 MOTOR LEAD EXTENSION - MLE
MLE WITH RADIAL - FACE SEAL, SMALL-SIZED
This is used as part of a cable line for three-phase electric current supply to submersible electric for motor size: 319

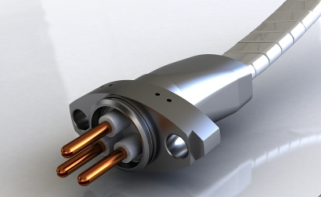

05 MOTOR LEAD EXTENSION - MLE
MLE WITH RADIAL - FACE SEAL
This is used as part of a cable line for three-phase electric current supply to submersible electric for motor size: 272
